Sony U-Matic Video Recorder VO-5850P (Lo-Band)

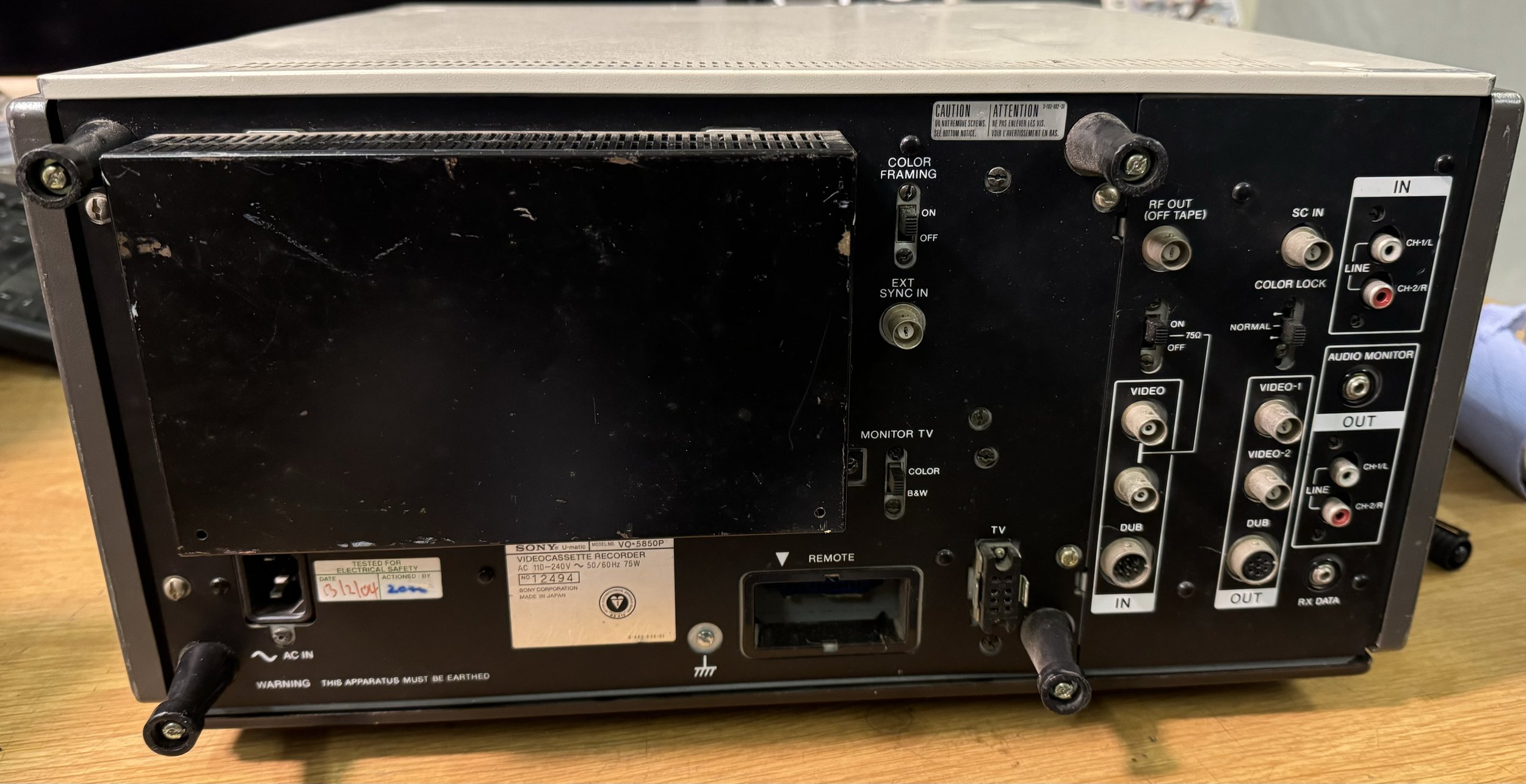

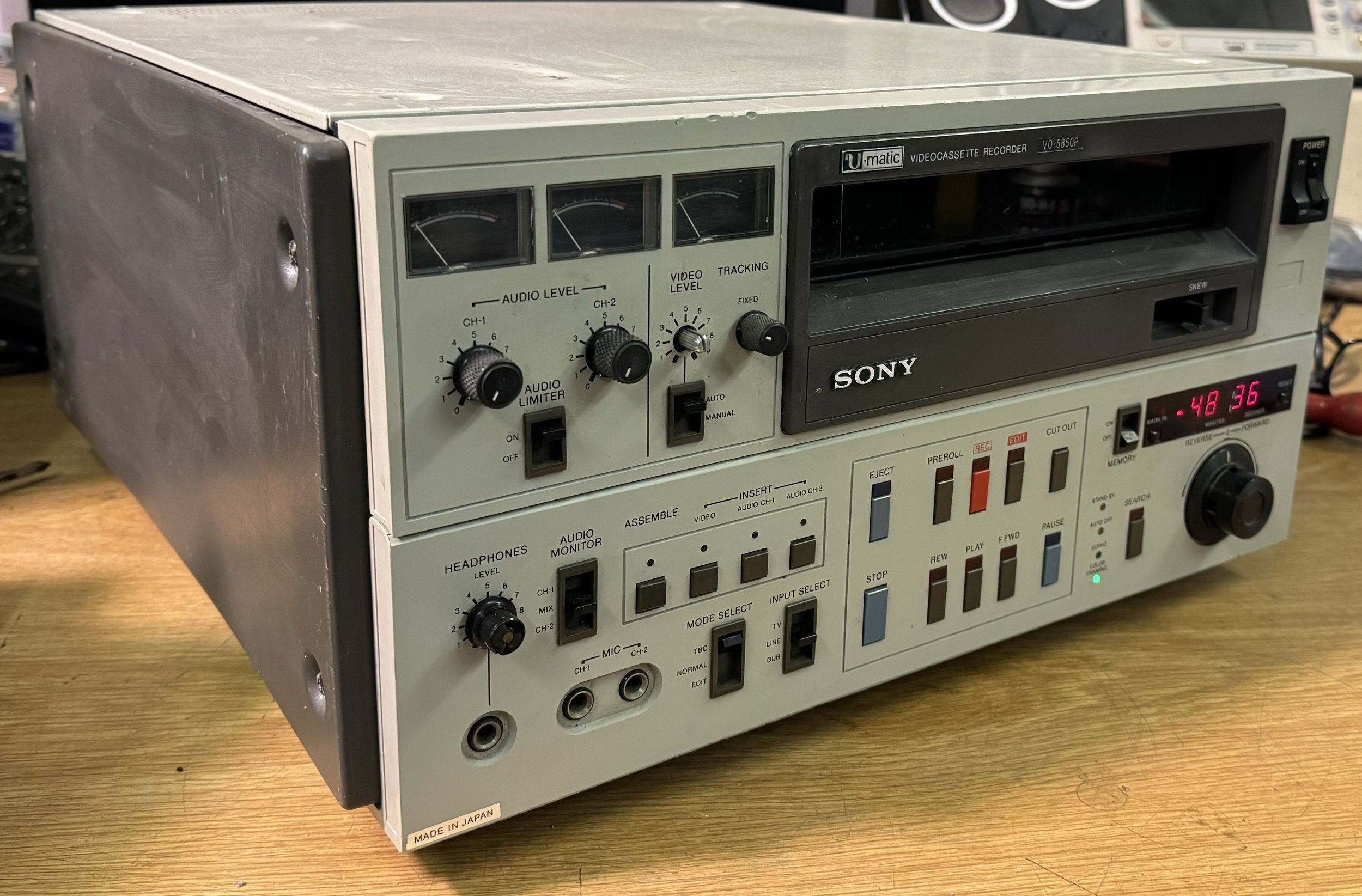

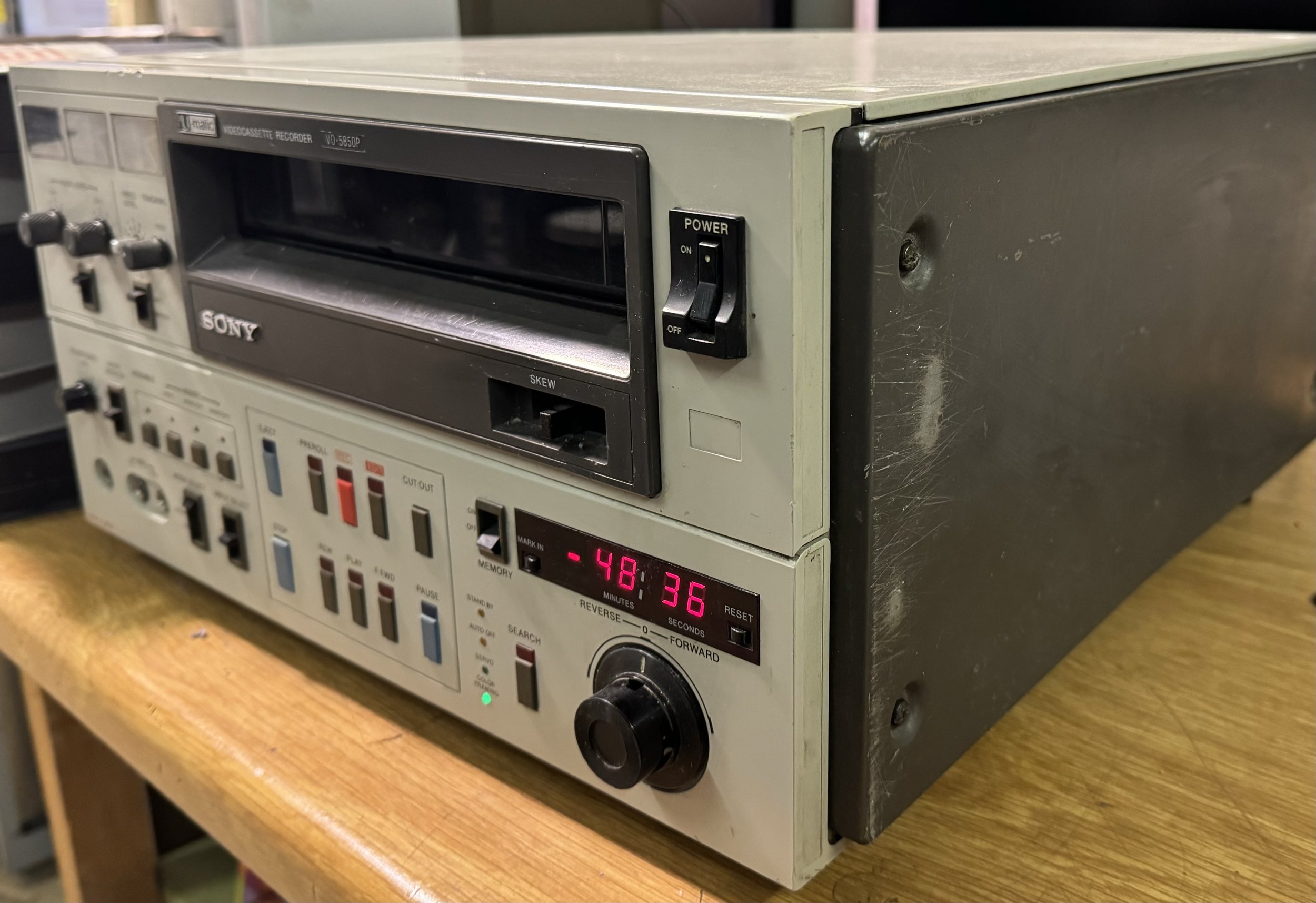

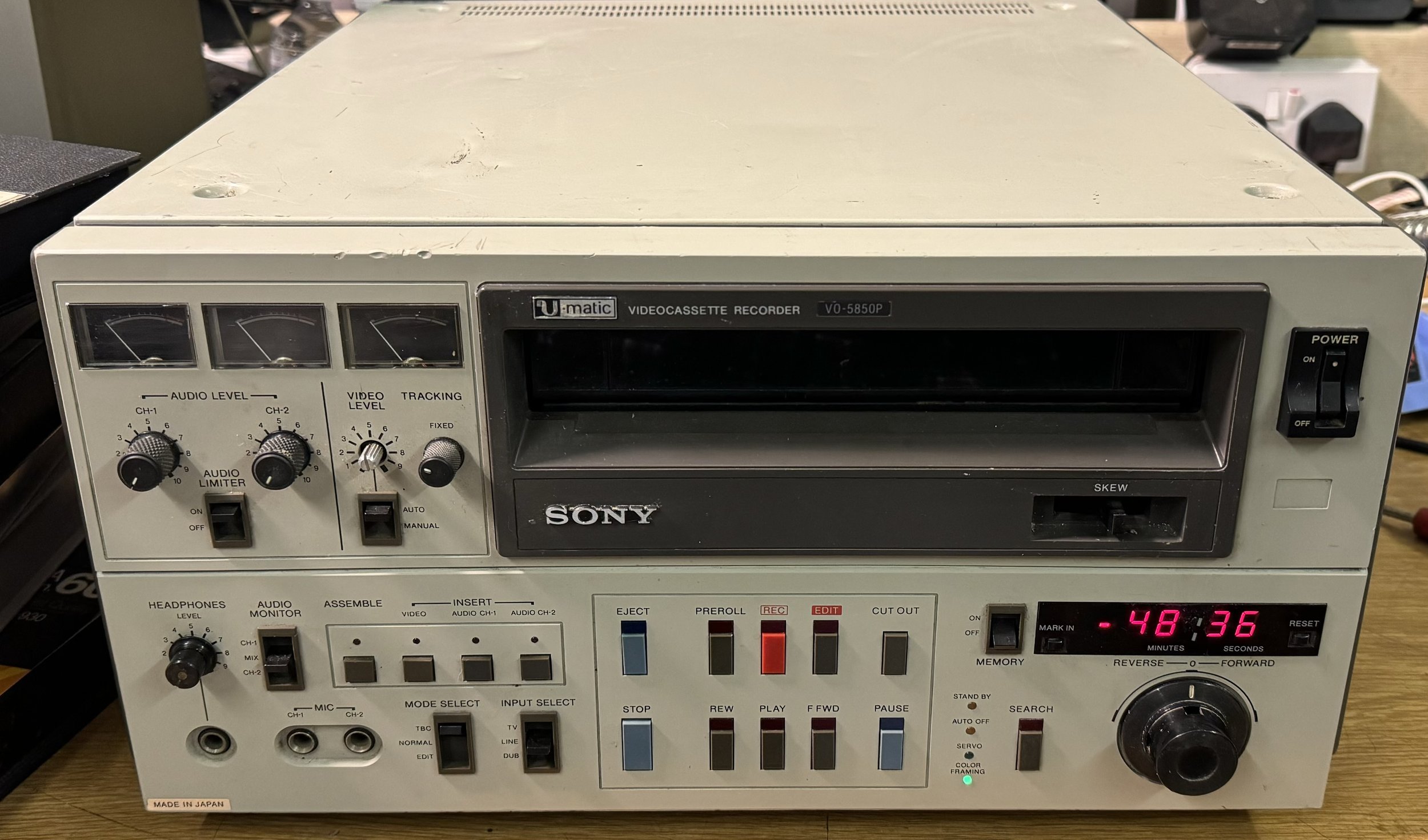

This is for one tested and working U-Matic video recorder. It is the V0-5850P.
It will play both full size cassettes, and U-Matic-S tapes (which were smaller, and used in some portable machines). This is the Lo-Band format machine, not to be confused with U-Matic Hi Band or U-Matic SP. Condition is very good, with marks and scratches consistent with the machine being used in a commercial environment.
.
Collection is advised from Chesterfield, Derbyshire, as it weighs around 30kg, and could be damaged in transit. You will be able to see the machine working.
Postage CAN be arranged, but this would most likely be hand delivered by me - so please contact for a quote, which will depend on your location.
.
Some features of the machine are below (with thanks to Palsite):
Full automatic editing possible with the RM-440 control unit.
Bidirex search operation at 1/30th to 5 times normal speed forward and reverse. (10 times normal when KCS cassette is used.)
Preroll button to secure stable picture at edit-in point.
Dubbing connectors for editing or duplicating video signals.
4-field colour framing system avoids colour flashing at edit-in point.
LED time counter indicates tape expired in minutes and seconds.
Mark-in function for fast location of particular points on tape.
Automatic stop in long pause mode (after about 8 minutes) protects heads and avoids tape damage.
Remote control/auto-search with optional RX-353CE or RX-303CE.
Connectors for optional time base corrector.
Microcomputer-based logic controls for direct switching between modes.
Full automatic rewind at end of tape.
Video recording level adjustable manually or automatically.
Limiter circuit minimizes audio distortion at programme peaks.
High definition still picture when PAUSE button is pressed.
Moisture detector prevents damage from condensation.
Two audio tracks for stereo/ bilingual recording and playback.
Digital servo system for stable playback picture.
Low power consumption.
Operates on wide range of voltages/frequencies without adaptation.
Mountable in 19" EIA standard rack or other racks to suit needs.
..
We have a number of U-Matic machines breaking for parts. Some are complete and working and some have faults. We also repair U-Matic machines. Please enquire for details.
.
U-Matic is an analogue recording videocassette format first shown by Sony in prototype in October 1969, and introduced to the market in September 1971. It was among the first video formats to contain the videotape inside a cassette, as opposed to the various reel-to-reel or open-reel formats of the time. The videotape is 3⁄4 in (19 mm) wide, so the format is often known as "three-quarter-inch" or simply "three-quarter", compared to open reel videotape formats in use, such as 1 in (25 mm) type C videotape and 2 in (51 mm) quadruplex videotape. Unlike most other cassette-based tape formats, the supply and take-up reels in the cassette turn in opposite directions during playback, fast-forward, and rewind: one reel would run clockwise while the other would run counter-clockwise.
